Concrete Infill Cover
A well-established cover system for standard, bespoke and multi-cover applications
Concrete infill covers are a trusted solution for providing secure access to underground infrastructure.
Heavily specified across telecoms, utilities, and wider infrastructure projects, they are a go-to choice wherever reliable chamber access is required.
Concrete infill covers are available in a wide range of standard and bespoke sizes, including multi-cover arrangements for larger chambers. Locking options and customer badging can also be specified to suit the network — get in touch to discuss.
At a glance
Key product highlights
📑 EN124 loading requirements
Meets requirements of BS EN124: 1994 (B125). Also meets relevant European and British standards, and comes kitemarked for compliance.
⬆ Practical handling
Tapered sides and centralised lift points allow one person to lift and slide the cover out. That makes access simpler for inspection and maintenance.
⛏ No inherent scrap value
Concrete infill covers aren't attractive to thieves. Stolen covers mean costs of replacement and of guarding open access chambers.
👟 Slip resistant in service
Slip resistance increases throughout the product life cycle as the cover ages. Ideal for long-term performance in busy pedestrian areas.
🔒︎ Secure locking
Spring-loaded cylinder locking mechanisms can be built into the cover. We can also offer custom locks, keys, and sub-security plate options.
⌛ Long lifespan
Concrete infill access covers offer long service life when installed, providing lower total life costs for the end user.
✅ Long-standing approvals
Concrete infill covers are the sole approved footway cover used by end users such as Openreach, Virgin Media and CityFibre.
⛊ Custom badging
Covers can be badged with information (such as network operator name or logo) to allow for identification by operatives.
How it works

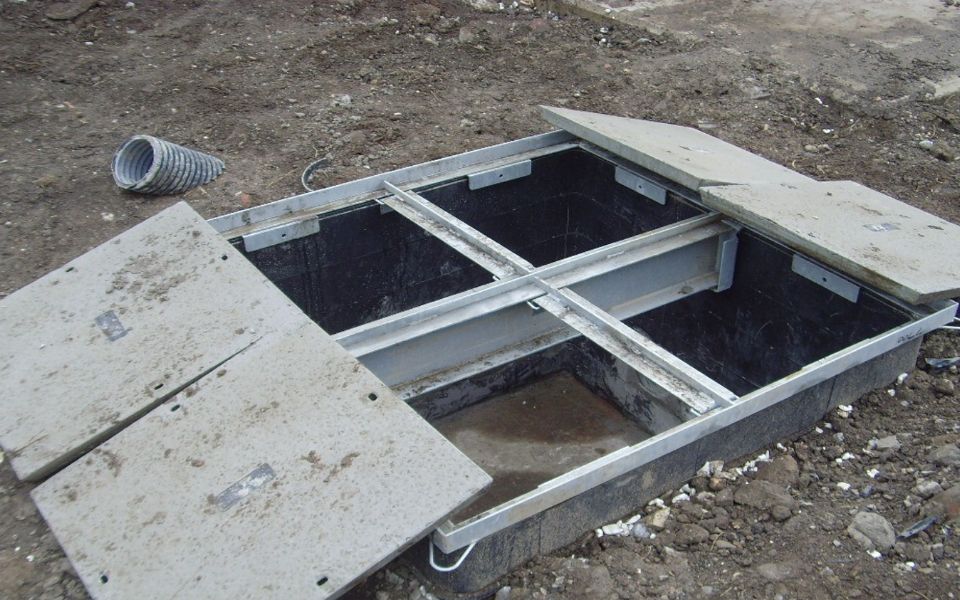

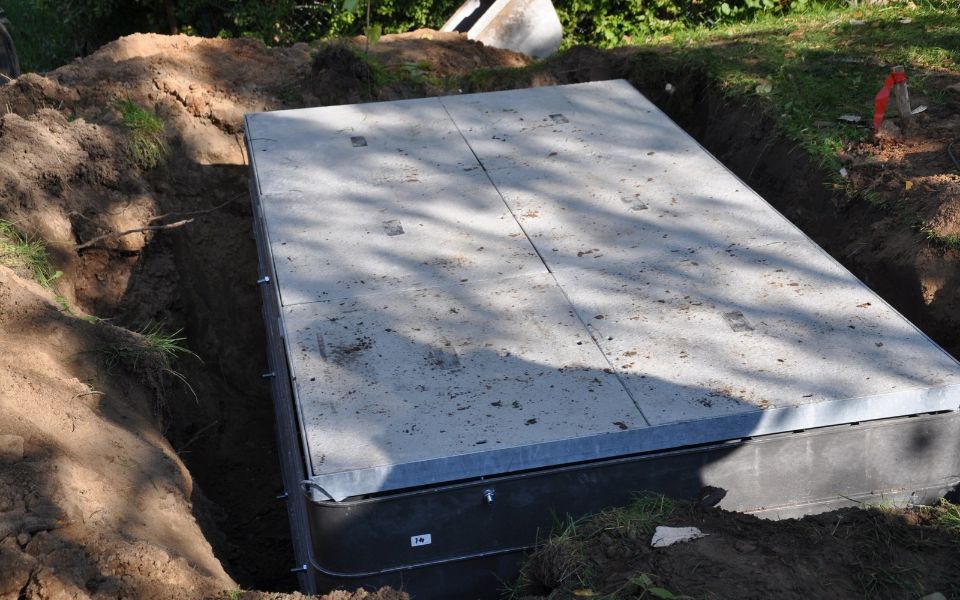

A suitable frame with any additional cross pieces is fitted to the chamber top. The concrete infill cover(s) are then placed carefully into the frame. Removal requires just one person and the relevant lifting / locking key. Our cover leaves are tapered and feature lifting points in the centre - not the corner - of the cover. This allows one person to safely lift and slide the cover out.
Product properties
Available sizes

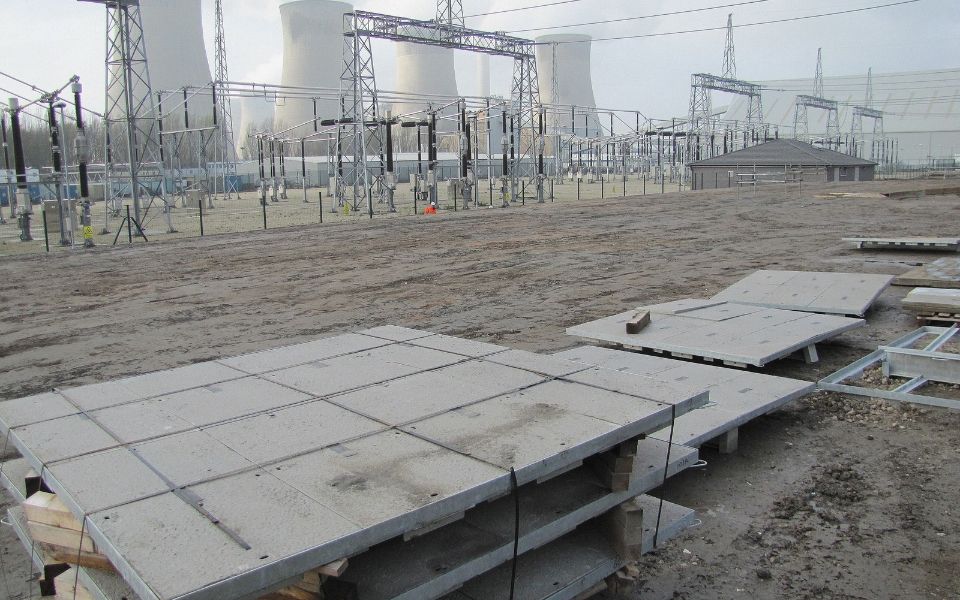

Concrete infill covers are available in various standard sizes, with bespoke options available too. By using cross-beams and cross-pieces, you can create multi-cover units tailored to your application.
Load rating
Concrete infill covers are suitable for installation in environments rated to B125 under EN124. Ideal for footways, pedestrian areas and comparable areas, car parks or parking decks.
Materials
Frames, covers, and cross pieces are manufactured from rolled steel section in compliance with BS1449 and galvanised in compliance with BS EN ISO 1461. Individual covers are filled with concrete.
Options and accessories
Concrete infill access covers can be supplied with the following components:
Customer badging
Bespoke customer details can be included in the access cover badge for identification and awareness. Contact the Cubis Systems team to request badge branding on your order.
Locking arrangements
Covers can be fitted with a bolt-down locking system to deter vandalism. Standard keys are also available as well as flat head, penta head, offset circle and snake eye arrangements.
Frames
Concrete infill access covers can be supplied with a number of frame options, including: raising, BLOK adjust, high-top, composite.
Sub-security plate
Works as a secondary cover that provides an additional layer of protection for below-ground infrastructure in high-risk or sensitive locations.
Bespoke keys
Locking keys can also be adapted to suit the end user’s needs. Contact us to discuss any specialist needs - we're happy to work under NDA for sensitive projects.
Accessory options
Alongside cover options, we also supply a range of chamber accessories including steps, cable management and duct entries so you can specify a complete solution.
Concrete infill cover FAQ
-
What information is needed to request a bespoke cover arrangement?
Provide the clear opening size, overall frame dimensions where known, loading requirement, proposed location and any security or badging requirements. Drawings or chamber details will help confirm the correct configuration before manufacture.
-
Can concrete infill covers be used with larger chambers?

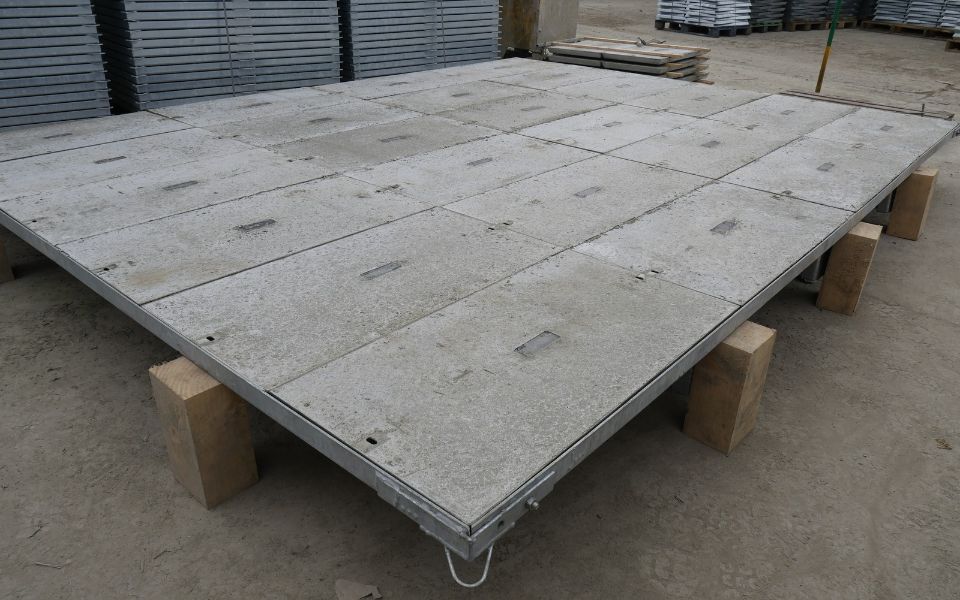

Yes. Multi-cover configurations can be specified using cross-beams and cross-pieces, allowing the cover arrangement to match larger or non-standard chamber openings.
-
Can I install concrete infill covers on top of any access chamber?
Any STAKKAbox™ access chamber from Cubis Systems, yes. It's worth noting that all our chambers and covers are designed, supplied and rigorously tested as a complete system. So, our STAKKAbox™ chambers and access covers should always be paired together for assured performance and load-rating validation.
-
Are installation instructions available?
Yes. Please refer to our concrete infill cover installation guide for details. You're also welcome to contact the team for any on-site support, including toolbox talks.
-
What if I have a non-standard chamber opening?
For unusually sized openings, multi-cover layouts, or projects with specific security requirements, speak to the Cubis Systems technical team before finalising the specification. We can help develop an arrangement around the chamber and site requirements - including bespoke cover slabs, sub-security plates, chamber access options, and more.
