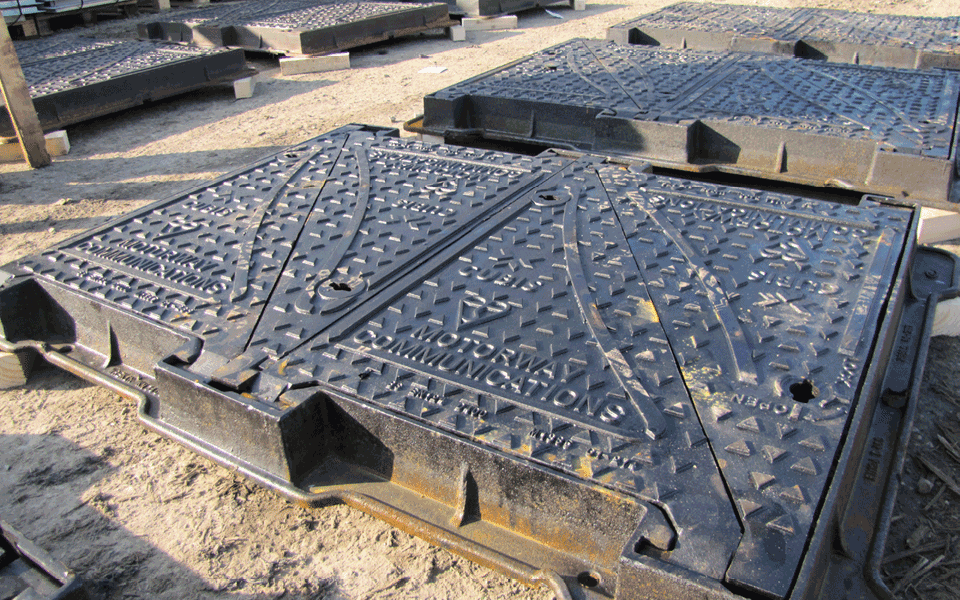

Ductile Iron Cover
A heavy-duty, high-strength cover solution for industrial applications
For projects at the heavier end of the load-class scale, we offer ductile iron access covers.
Our ductile covers provide a strong, reliable solution where the installation environment is more demanding.
Manufactured under a BS EN ISO 9001 quality system and independently certified by the British Standards Institution, they give specifiers confidence in performance where it matters most.
Ductile iron covers are available in a range of load ratings and configurations — get in touch to discuss your project requirements.
Key product highlights
🛡️ Security

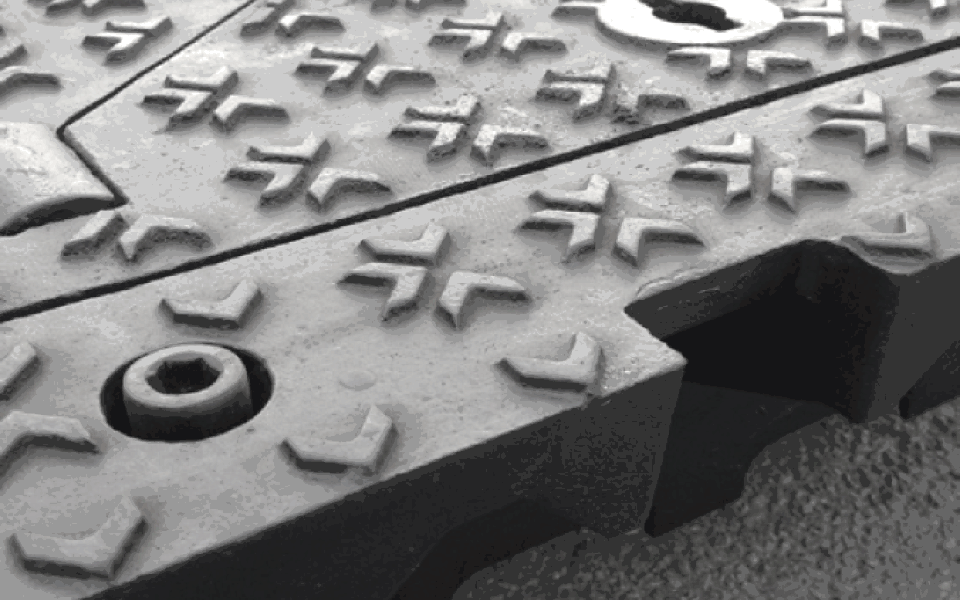

Ductile iron covers come with a range of locking options, including spring bar, captive hinge, and factory-fitted security bolts or screws. We also enable locking kits to be fitted retrospectively.
🔓 Safe, flexible access
Depending on the application, ductile iron covers are available in lift-out, slide-out, and hinged designs. That means you can still ensure safe, straightforward access despite the weight of the ironwork.
⌛ Durability
Ductile iron covers are engineered to last. The seating contact areas, the frame and flange thicknesses, and the controlled manufacturing tolerances all ensure long-lasting performance.
✅ Strong third-party assurance
Ductile iron covers are manufactured under the BS EN ISO 9001 quality system. They're independently tested and certified by the British Standards Institution, carrying the ‘Kitemark’ quality assurance symbol.
⚖︎ Strength without excess weight
Ductile iron material properties enable high-performance cover designs, while also achieving practical weight savings over less sophisticated materials.
📝 EN124 rating
Ductile iron covers meet European Standard BS EN 124 requirements - the mandatory standard for manhole covers throughout Europe. You're getting a proven solution built to recognised standards.
💎 Premium composition
Ductile iron combines compressive strength, castability, abrasion resistance, machinability and fatigue strength for reliable performance in demanding applications.
🏗 Built for heavily trafficked sites
Ductile iron covers can cope with load classes up to F900 under EN124 – meaning they’ll withstand heavy vehicle traffic including HGVs and aircraft. Ideal for high-load environments.
How it works

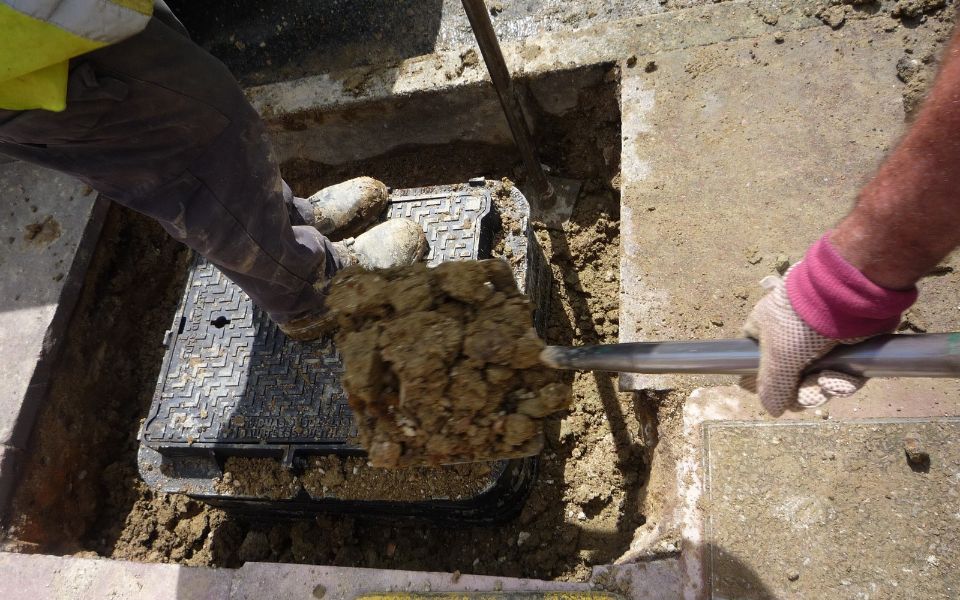

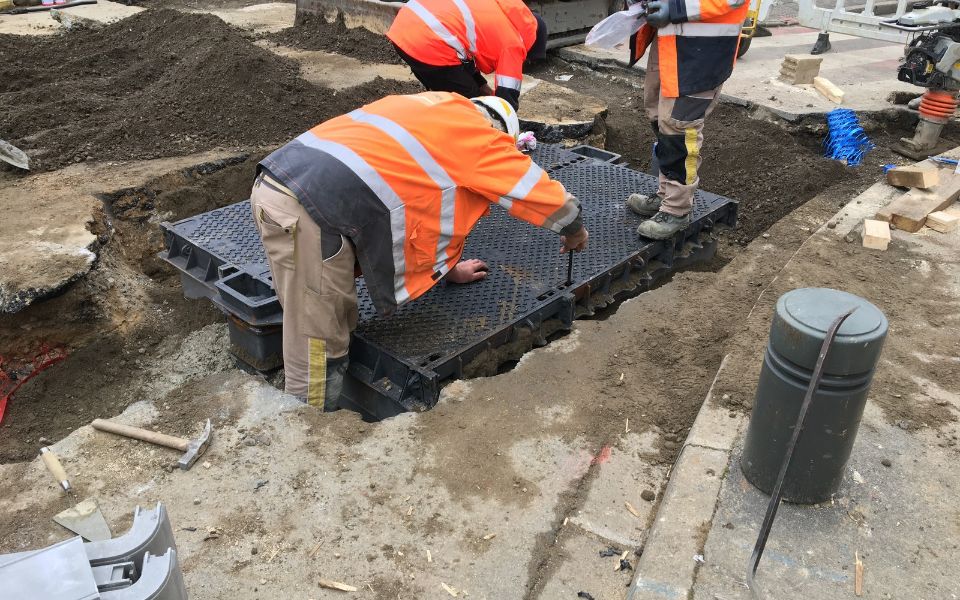

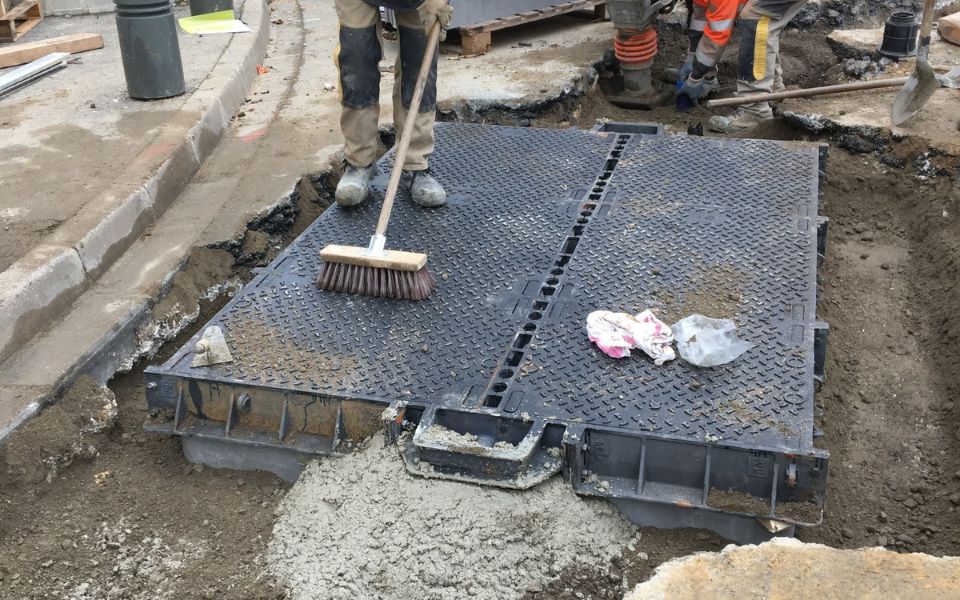

Ductile iron covers are indexed to ensure correct fitting, and they use a locked, sequential opening system. They’ll fit atop any STAKKAbox™ chamber, bedding onto a layer of mortar and finishing flush with the surrounding surface.
Product properties

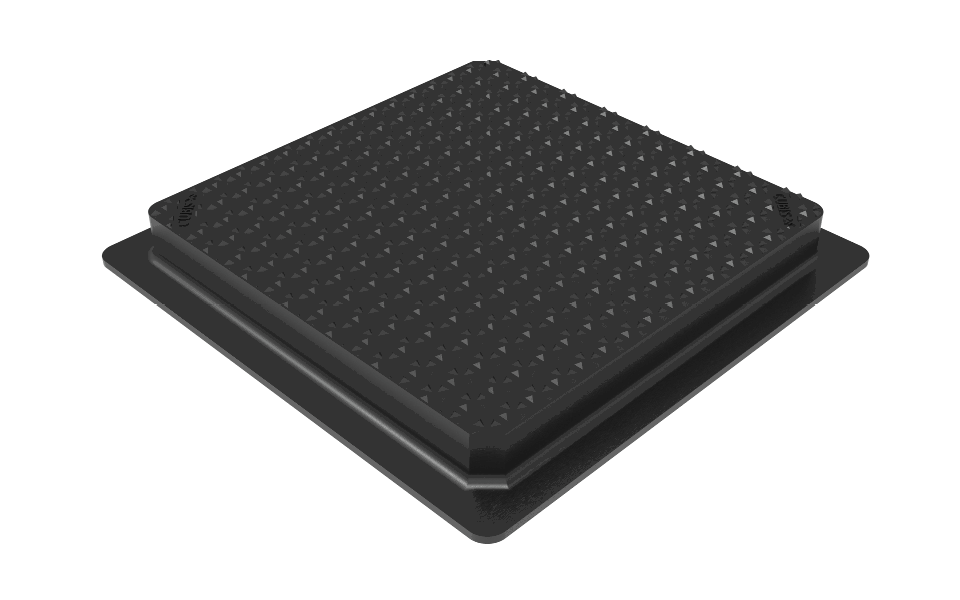

Available sizes
Ductile covers are available in a range of standard sizes to suit most project needs. We're also happy to discuss bespoke cover requirements. See the below size guide for details.
Load rating
D400 and F900 applications are our most popular ductile iron options. 12.5 tonnes (B125), 25 tonnes (C250), 40 tonnes (D400), and 90 tonnes (F900) load ratings are all available.
Materials
Manufactured using high-quality 500/7 grade ductile iron. Ductile iron maintains the traditional qualities of cast irons, resulting from the high carbon content.
Ductile iron cover FAQ
-
What other high-performance access-cover options are available?
Alongside ductile iron access covers, Cubis Systems also offers D400 composite cover systems and bespoke concrete cover slabs for demanding applications. The right option will depend on the required load class, chamber arrangement, access requirements and site conditions — speak to the team to discuss the most suitable solution for your project.
-
Is bespoke badging available?
We can accommodate various customisation options around badging and security details. We can also work under NDA if your project is sensitive. Contact us to discuss options.
-
Can ductile iron covers be used with a STAKKAbox™ chamber?
Yes! Cubis Systems chambers and covers are designed, supplied and rigorously tested as a complete system. Using a third-party, non-STAKKAbox™ chamber does not provide the same assured performance or load-rating validation.
-
What information is needed for a ductile iron cover enquiry?
Provide the chamber clear opening, installation location, required load rating and any security requirements. Drawings and details of existing infrastructure will help confirm the correct cover and frame configuration.
