MMtrough

MMtrough is a GRP moulded cable trough system. Weighing under 10kg but capable of of taking loads imparted by vehicular traffic, MMtrough offers significant advantages in health and safety, speed of installation and flexibility.

Enquire about this product

Features & Benefits

Quick Assembly

One metre long sections are connected together using jointing pegs which allows 1-3° of movement possible to follow gentle curves in the track.

Tamper Proof

MMtrough units can be secured against the threat of vandalism or theft with standard tamper proof locks and keys.

Fire Retardant

MMtrough won't catch fire and has low smoke properties.

Strong

MMtrough is designed with reinforced ribbing and twinwall design which ensures it meets pedestrian loadings.

Linear Ballast Anchor Points

Linear ballast anchor points secure the MMtrough unit into the surrounding material, meaning units are not displaced by the velocity of passing trains or vehicles.

Flexible

MMtrough is built with 3° of flexibility in the interlocking connection to match bends in the track. For more extreme bends, vertical and horizontal bends can be supplied.

Lightweight

Weighing under 10kg, MMtrough offers significant health and safety advantages over traditional concrete troughing systems that can weigh over 90kg.

Single Person Install

MMtrough is suitable for single person lift and install, enabling compliance with manual handling regulations. Being lightweight and easy to deploy results in considerable project time and cost savings.

Materials

GRP

Glass-reinforced plastic (GRP) is a composite material, fibre-reinforced polymer made of a plastic reinforced by fine fibres made of glass. GRP has a high strength to weight ratio, high temperature range, high mechanical properties and is fire retardant. Additionally, GRP is also chemically insert and isn't susceptible to creep.

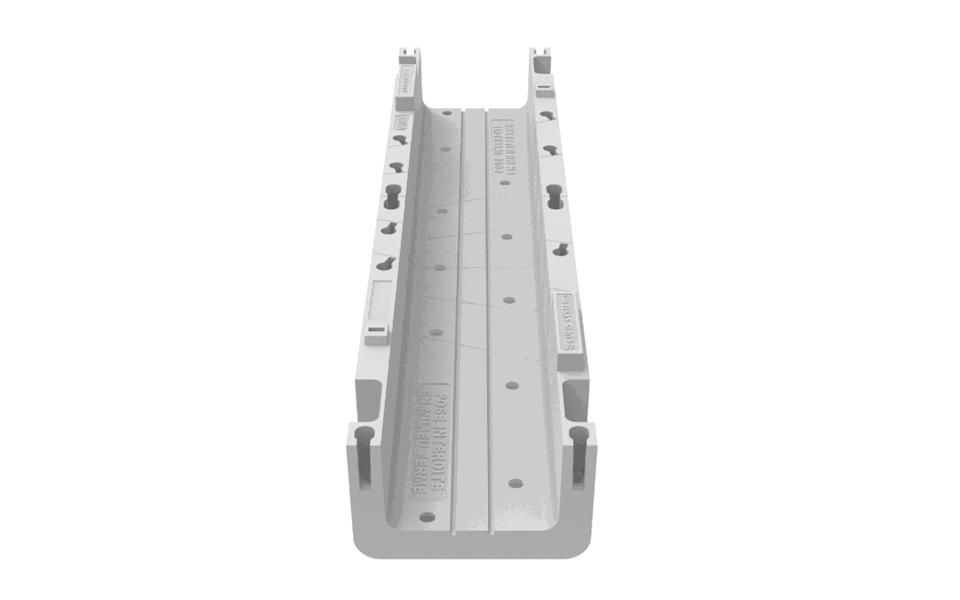

MM Trough SNCF Front 730x410

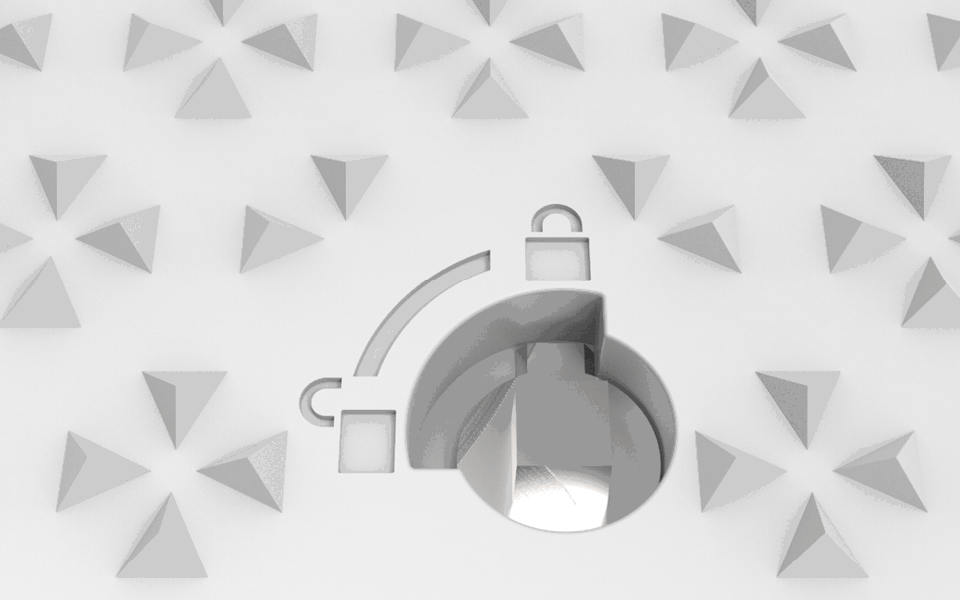

Locking

Covers can be locked and opened individually or as a combination of several covers and can be secured against the threat of vandalism or theft with standard tamper proof locks and keys.

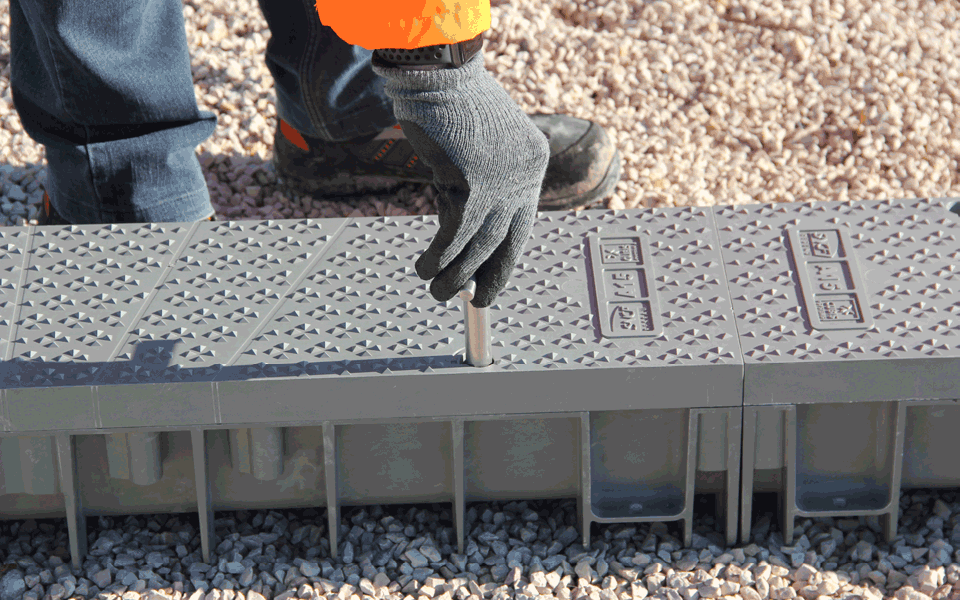

MM Trough SNCF Locking 2 730x410

Load Rating

MMtrough meets the vertical load class of A15 set by EN124.

MMtrough has been designed with optimum sidewall strength performance to ensure minimal flex when back filled.

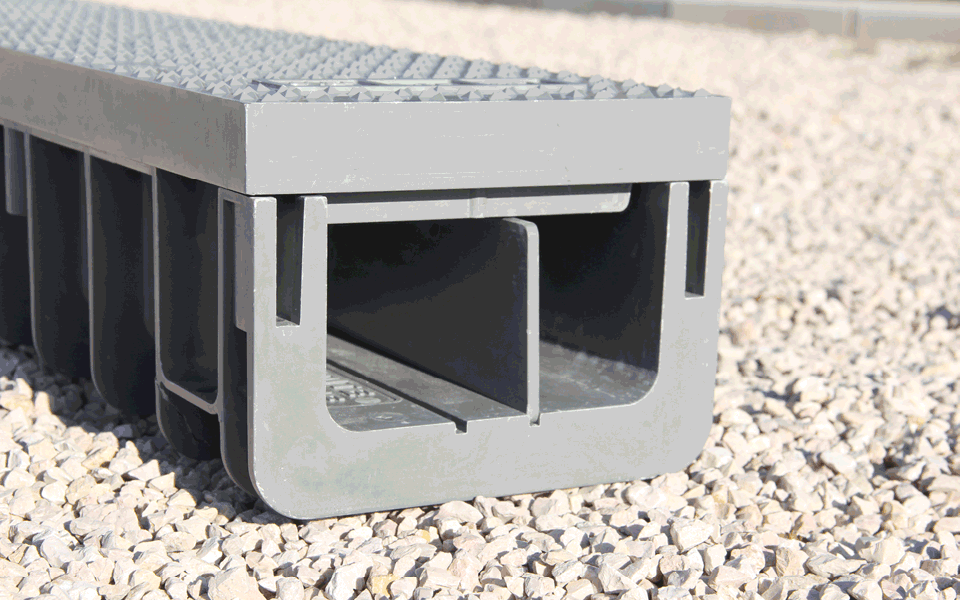

MM Trough SNCF Close Up View 730x410
