STAKKAbox™ Utility
One access solution for every utility
The strength and safety of the STAKKAbox™ range.
A new, versatile format for any general civils project.
STAKKAbox™ Utility is the all-in-one chamber solution for utility installers. It offers both standard and ducted solutions in a single multi-purpose system – providing contractors with unparalleled versatility.
Designed for fast, safe, and consistent installation, STAKKAbox™ Utility delivers superior build quality and improved on-site safety compared to traditional methods.
New and exclusive to our STAKKAbox™ Utility line
![[NEW] Ring section design](/media/34eltkmt/sb-utility-thumbnail.png)

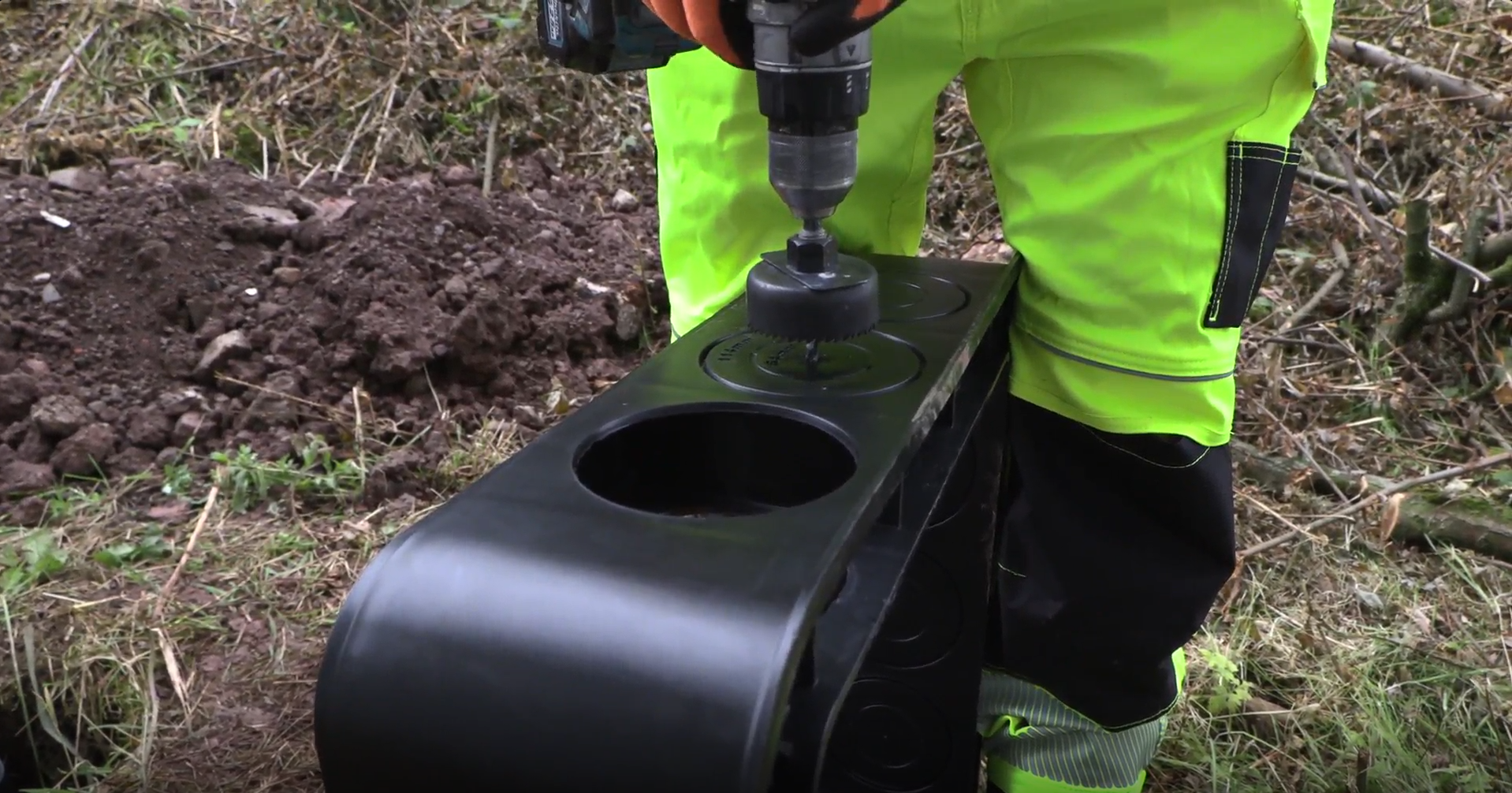

[NEW] Ring section design
Read More![[NEW] Composite frame and cover](/media/2e5npttp/sb-utility-card-2.jpg)

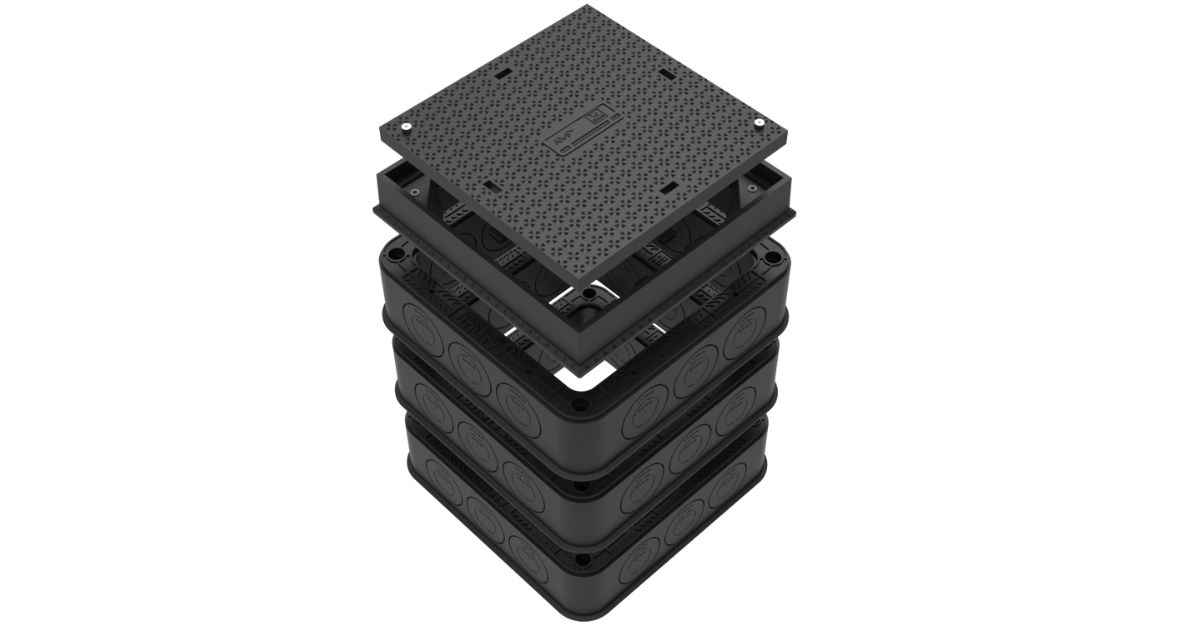

[NEW] Composite frame and cover
Read More![[NEW] Sustainability gains](/media/okjbtxic/sb-utility-card-1.jpg)

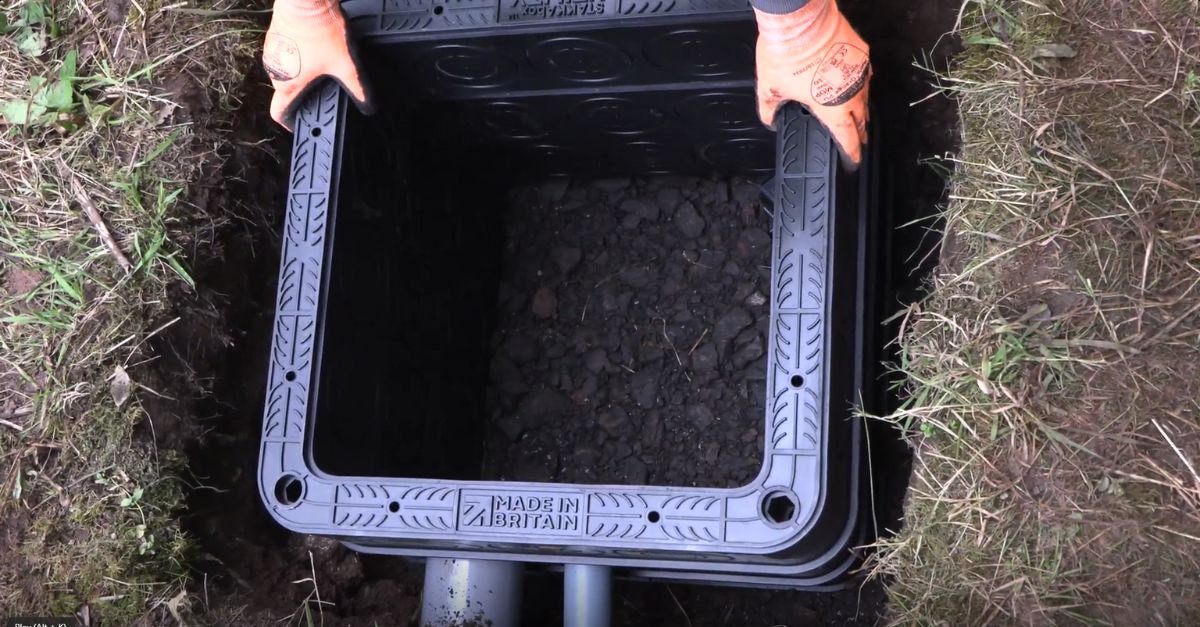

[NEW] Sustainability gains
STAKKAbox™ Utility uses modern materials that are lightweight, adjustable, space-saving, and which achieve up to 100% recycled PP. Our product range is externally verified by The International EPD® System, giving specifiers and installers confidence in its environmental performance.
Key features & benefits
Flexible applications
The system is easy to adapt on-site using standard tools. Installers can overbuild existing networks, introduce new duct entries, and fine-tune the top section for hassle-free project flexibility.
Rapid installation
STAKKAbox™ chambers are significantly faster to install than conventional alternatives. Complete installations typically take less than one hour — resulting in reduced costs for the installer.
Sectional design
STAKKAbox™ Utility is built in easy-to-handle 150mm sections, allowing installers to quickly achieve the required depth without the need for lifting equipment.
Light but strong

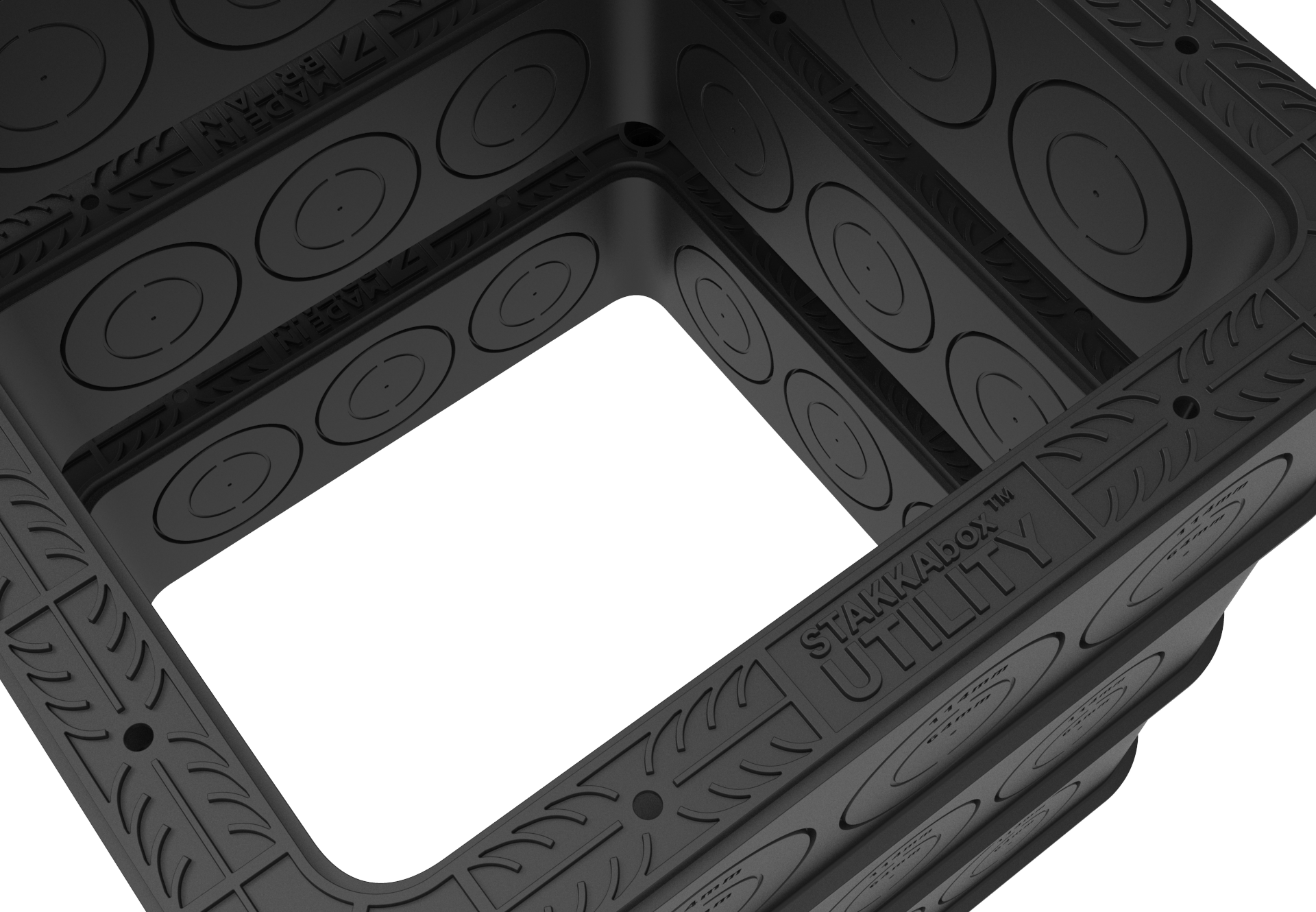

Twin-wall construction keeps each section lightweight for manual handling. Each access chamber has vertical and horizontal ribs, resulting in exceptional strength in vertical and sidewall loading.
Reduced installation costs
No need for specialist backfills means faster installs and lower costs. This makes STAKKAbox™ Utility a smart, efficient choice for any underground utility project.
Made in Britain
Cubis Systems is a proud British manufacturer. So, as well as the inherent sustainability of using the recycled and recyclable STAKKAbox™ Utility, you also gain a greener supply chain.
Minimal drilling
The product's integrated duct knockouts and predefined drill points allow contractors to complete installs as quickly, easily, and inexpensively as possible.
A single product line
Our patent-pending solid ring structure means that STAKKAbox™ Utility isn't made up of component parts — reducing ordering, handling, training, inventory, and installation needs.

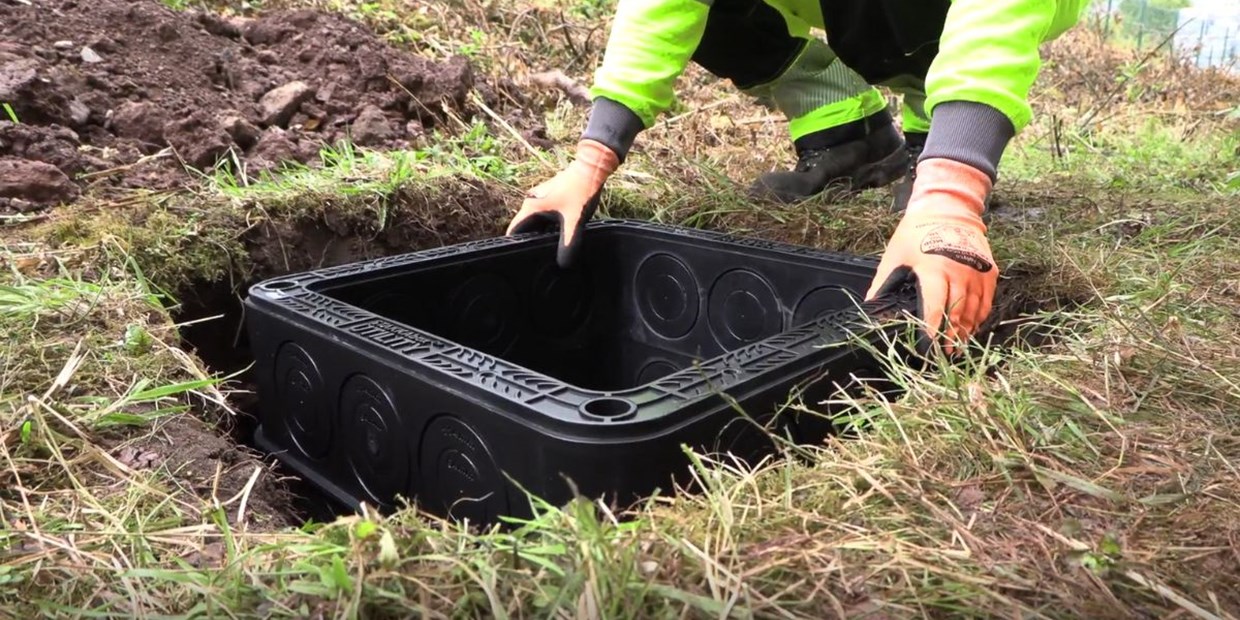

Fast facts:

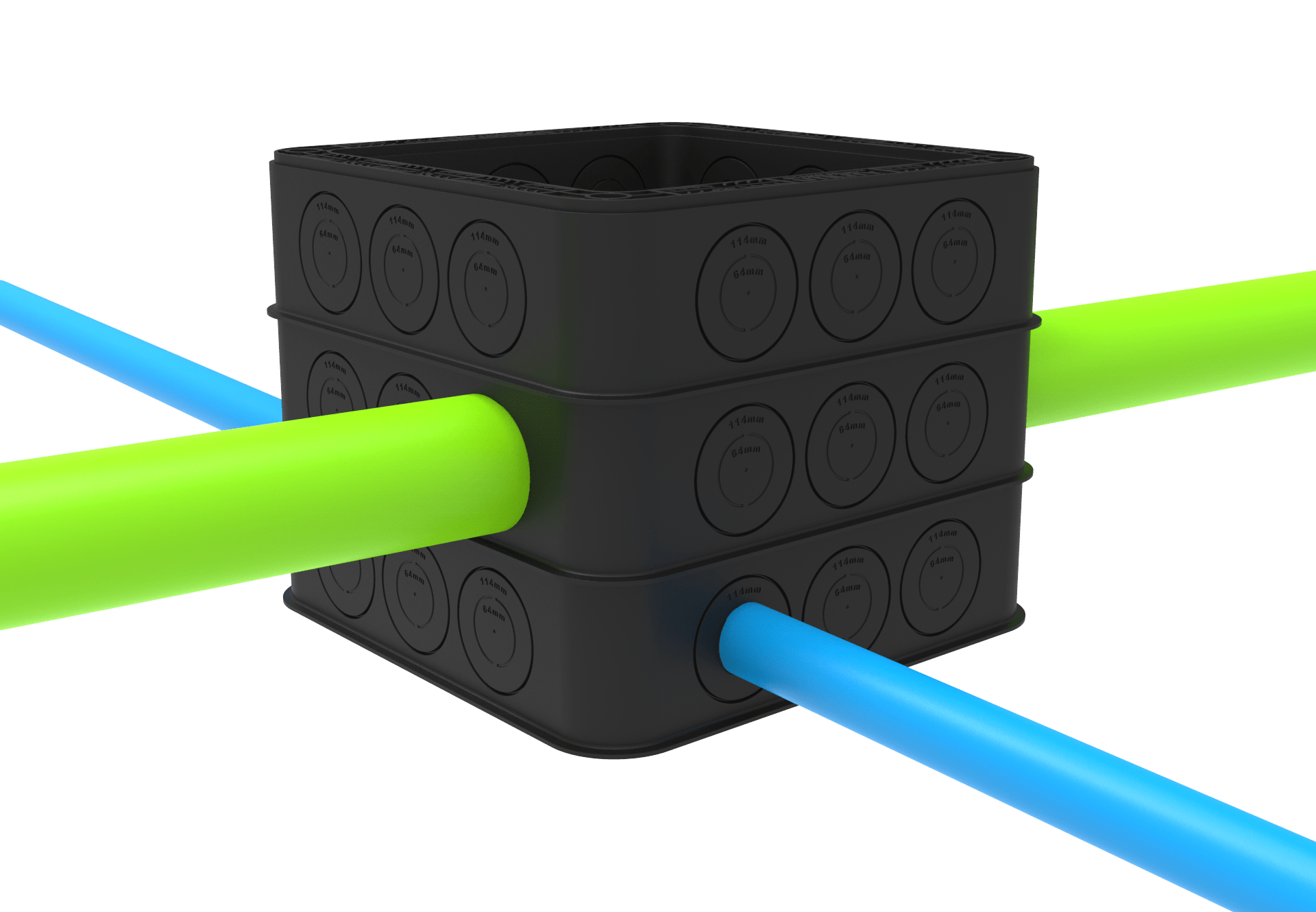

| Standard and ducted options in one system
| 110m duct knockouts plus predefined drill points for other sizes
| Custom tread grips mortar and resists movement
| All-composite frame and cover that beds directly on top of the chamber
| Passes C250, and tested to D400 in the ground
| Size range: 450 x 450, 600 x 450, 600 x 600 (mm)

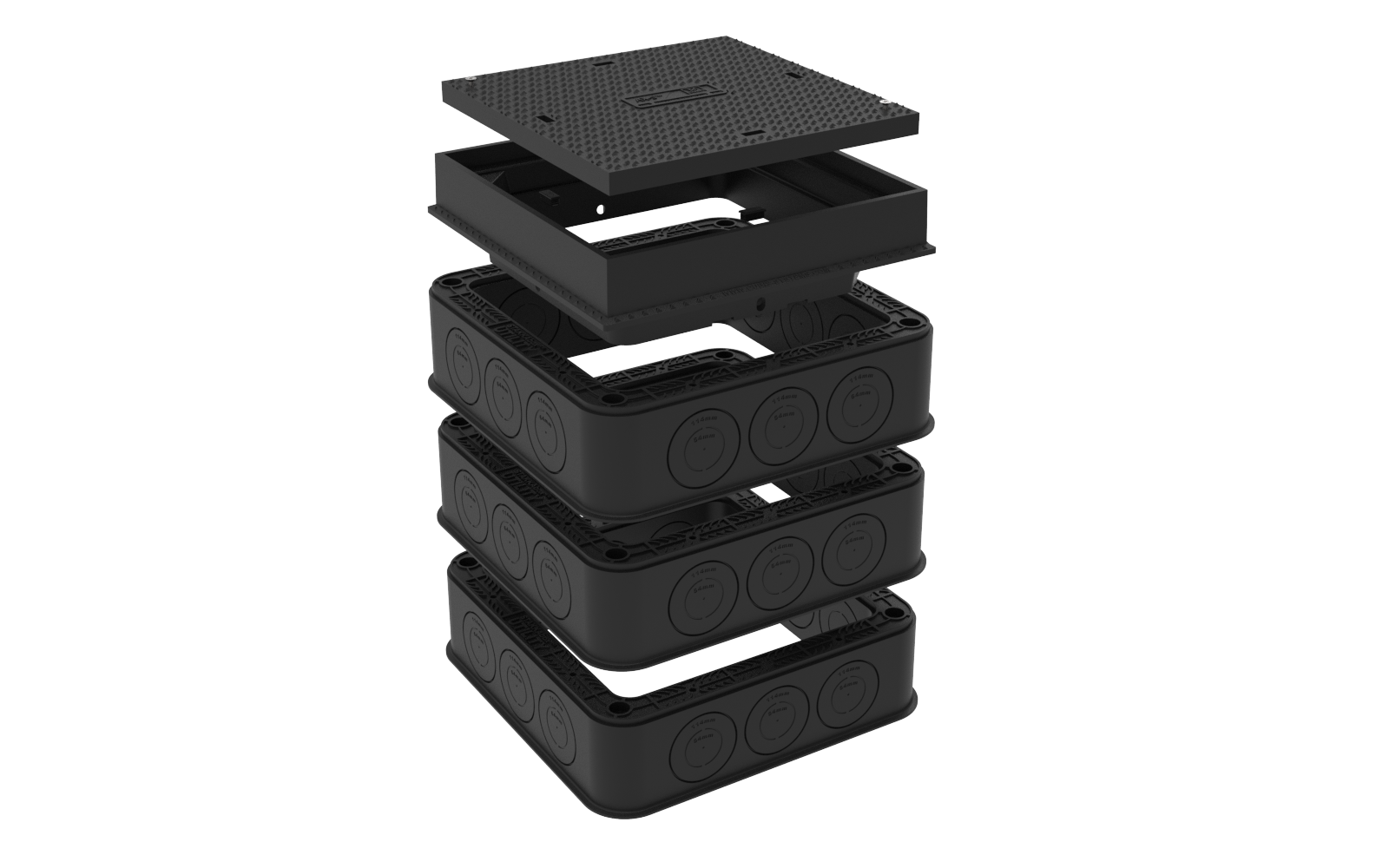

How it's built

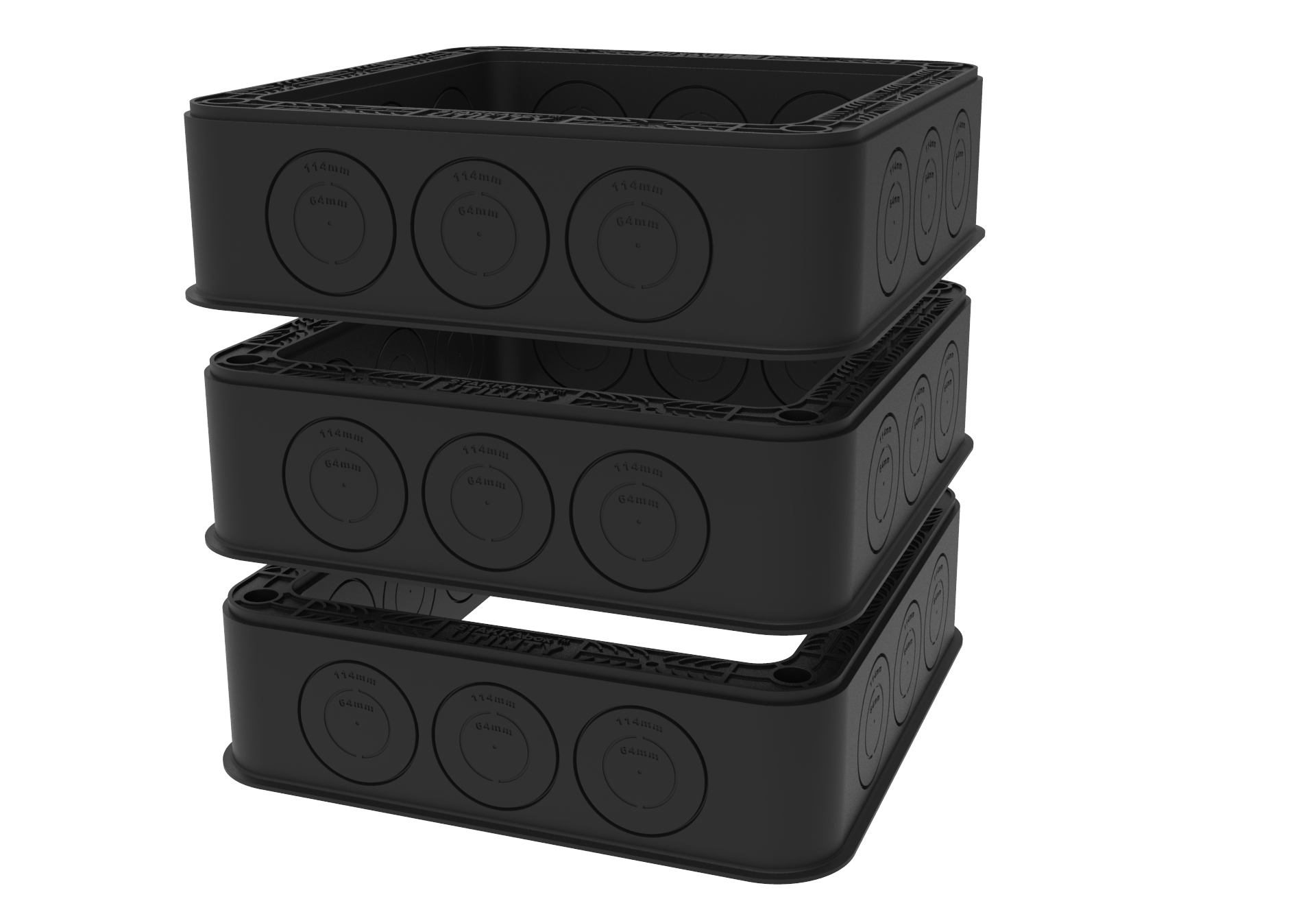

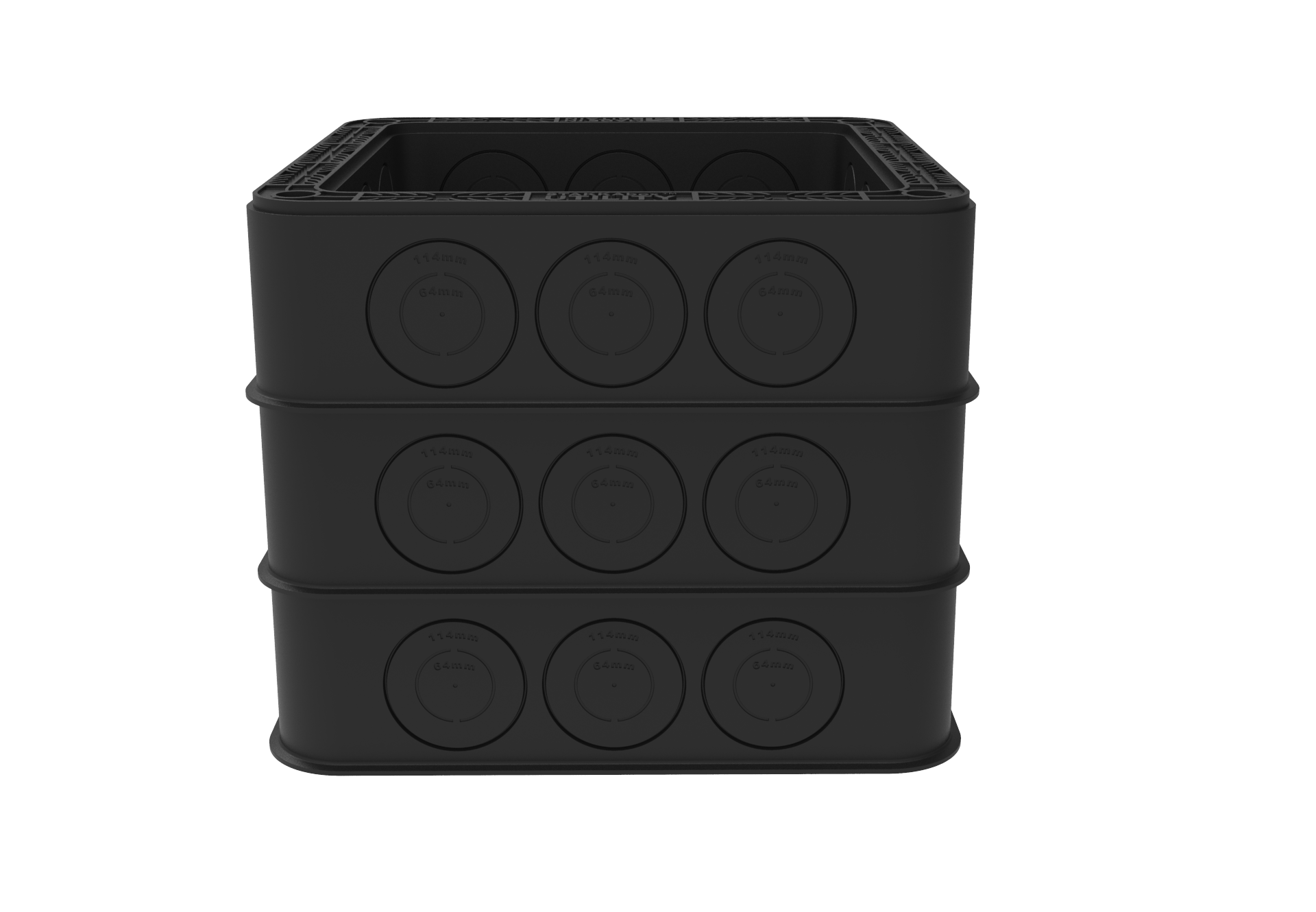

STAKKAbox™ Utility is built for simple access and utility-grade strength. Stack lightweight, 150mm-deep sections on top of each other on a Type 1 base to achieve the desired depth. Cut ring sections to bridge over or around existing obstacles — with no need for lifting plant or skilled box builders. Whether you’re working on new installations or retrofitting around existing networks, STAKKAbox™ Utility delivers flexibility and reliability.

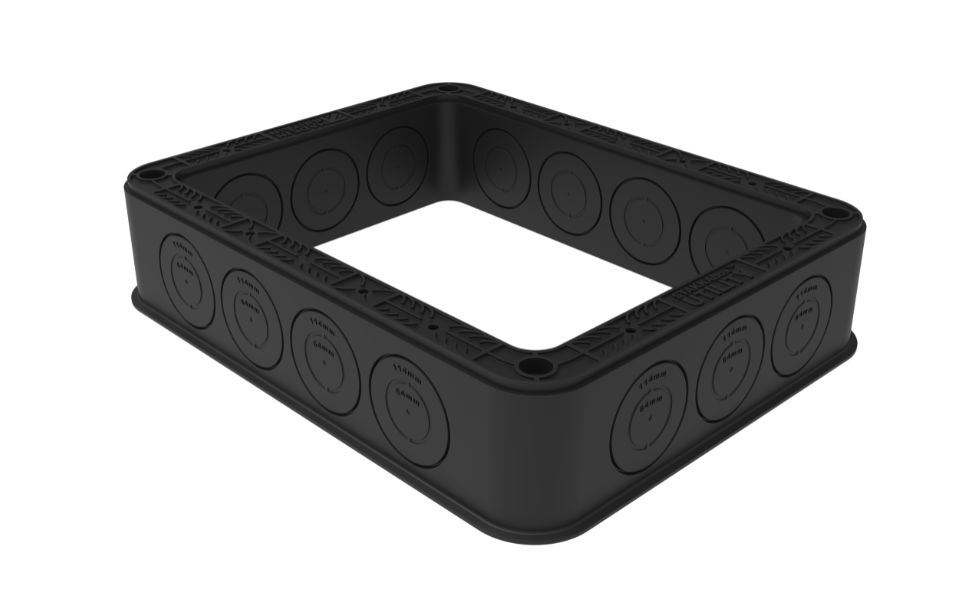

Materials
Modula PP
STAKKAbox™ Utility is moulded from Polypropylene (PP). This gives the solution excellent strength to weight properties, while making it fully recyclable.

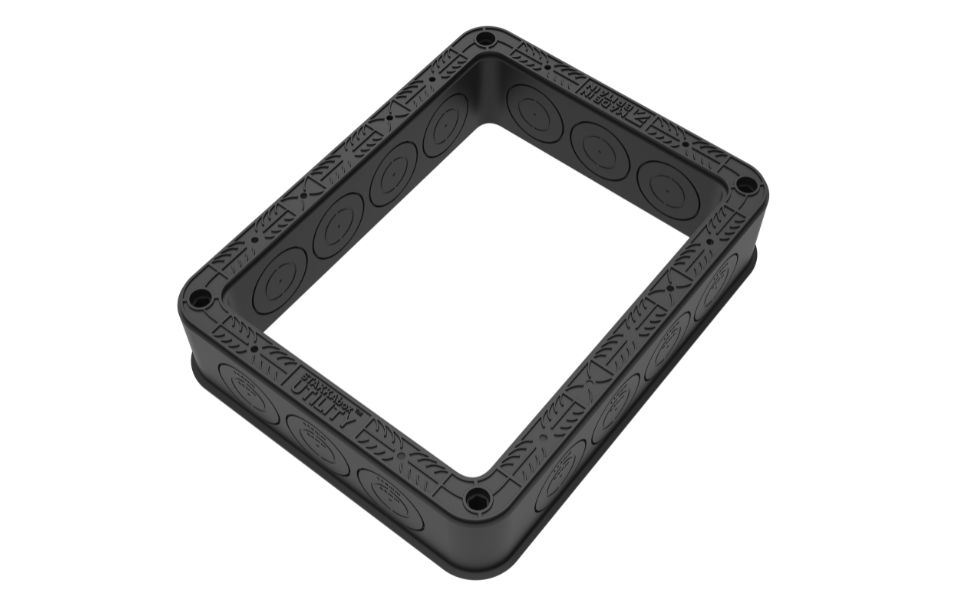

Available sizes
Modular, and available in multiple options:
450 x 450mm // 600 x 450mm // 600 x 600 mm //

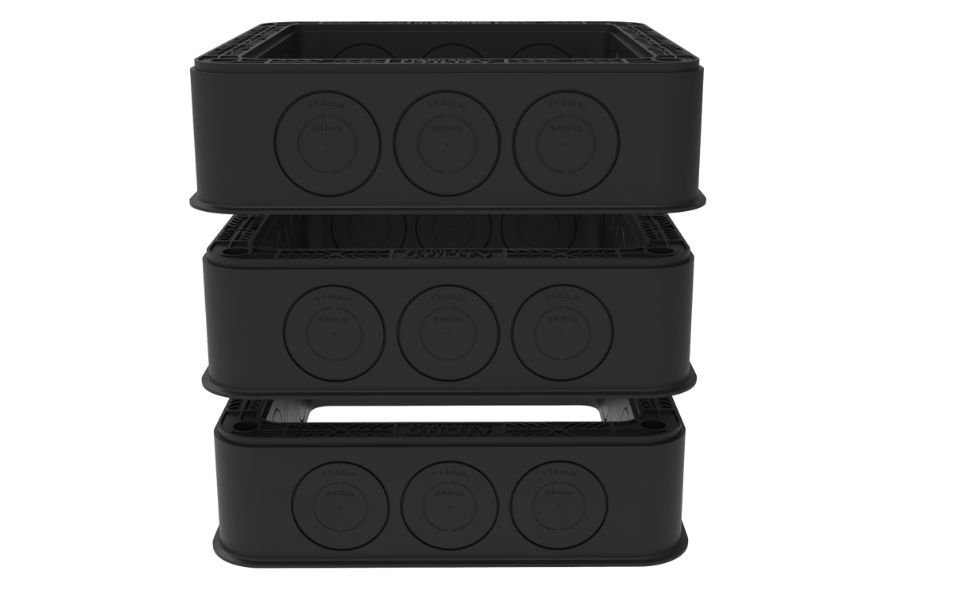

Load rating
Extensively tested to meet loading requirements up to D400
The loadings match the vertical loading categories recognized by EN124 gully tops and access tops for vehicular and pedestrian users. (When installed per guidance.)
